Huum Hive Mini Heater

Huum Hive Mini Heater
NZ$7,100.00

Needing a heater for a larger home sauna?

Don’t let the name mini fool you! The Huum Hive Mini is a mighty unit with the same beautiful lines of the Huum range. Made from high quality stainless steel, with award winning design and offered with a 2 year warranty.

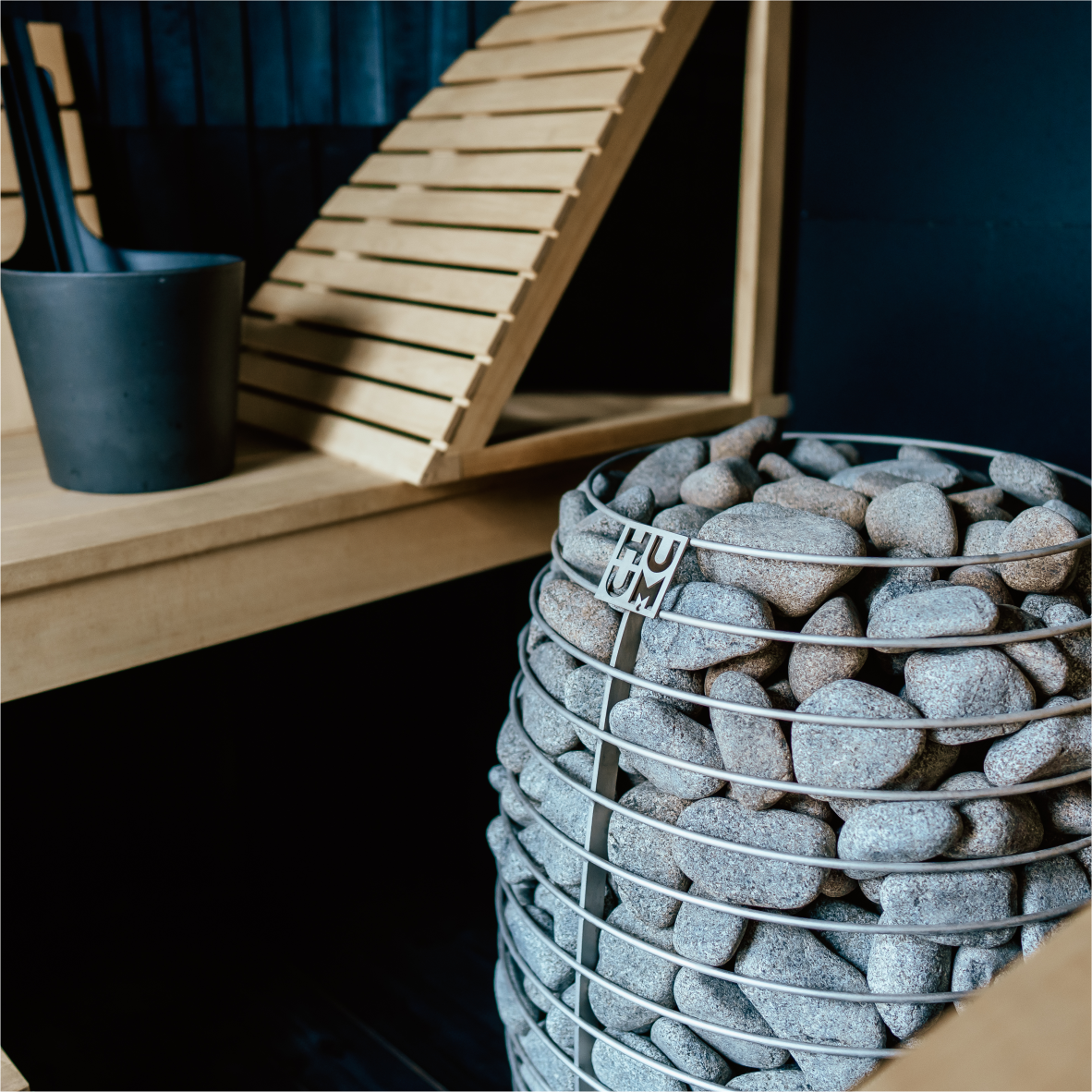

These heaters are free standing and hold a whopping 170kg of rounded sauna stones. We can also provide the optional safety rail (pictured) and floor insert plate for use in a false floor. For more information on this heater range, see the manufacturers website here.

Huum Hive Mini 9kw heater with classic black UKU control panel $7100. (Includes 170kg of stones) – suitable for small commercial sized rooms 8-15m3 (Special Order)

Huum Hive Mini 10.5kw heater with classic black UKU control panel $8500. (Includes 170kg of stones) – suitable for small-med commercial sized rooms 10-20m3

Safety rail pictured $500

Floor insert plate $450

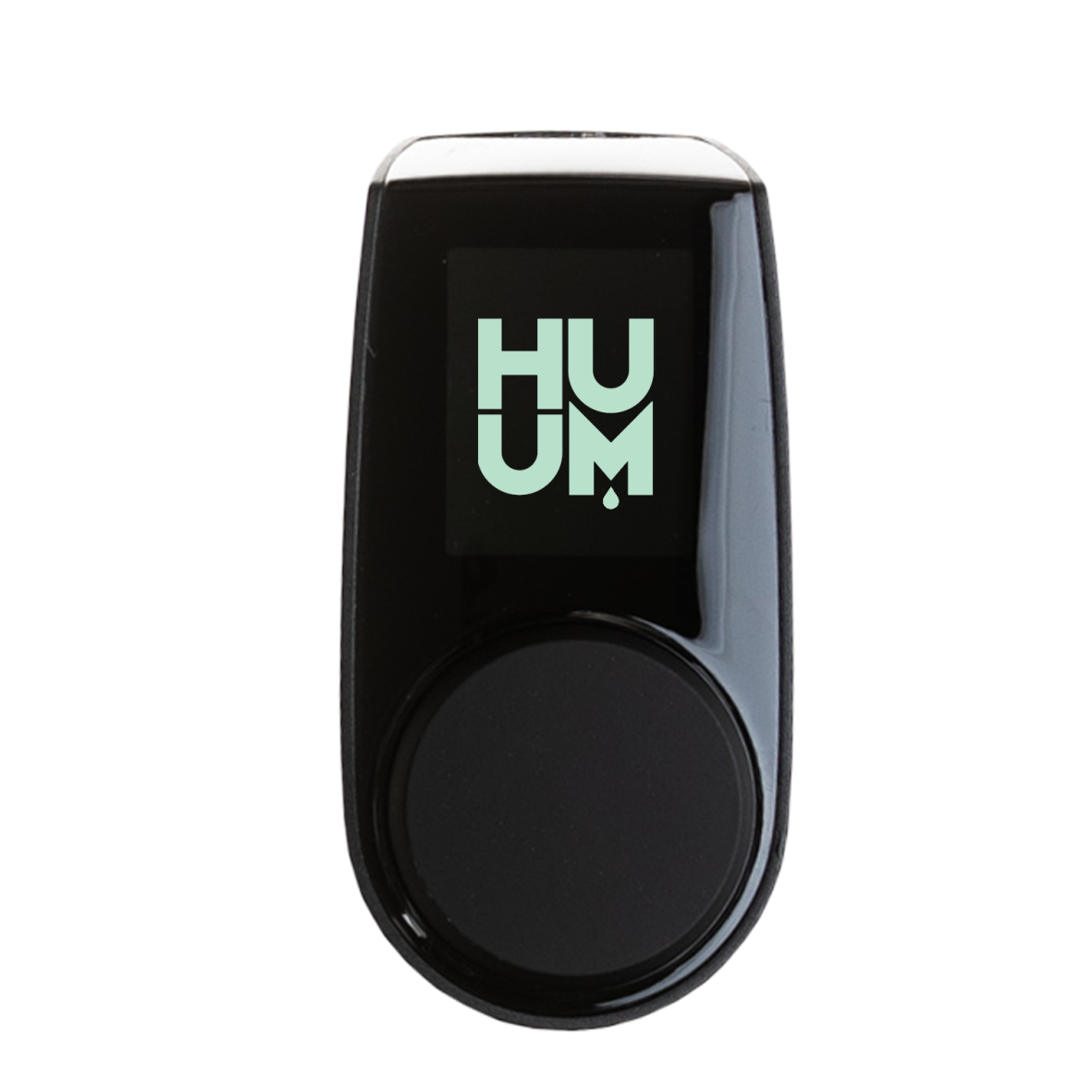

Black mirrored Wifi controls additional $500

Freight is not included in the cost. Please contact us for a freight quote, we try to use the most economical method possible, but be aware these units are heavy and large. We can happily accept a Christchurch pick up.

Huum Hive Mini 9

  • Power rating (kW)9
  • Steam room min (m³)8
  • Steam room max (m³)13
  • Holding capacity of sauna rocks (kg)170
  • Weight (kg)16
  • Height (mm)750
  • Diameter (mm)460

Connection

  • Fuse16 A
  • Supply voltage, 3-phase3/N~400 V
  • Power cable (N x mm²)5 x 2.5
  • 230V 1N connection is analogous to a 3-phase connection. Division of heating circuits must precede the circuit breaker.

Huum Hive Mini 11

  • Power rating (kW)10,5
  • Steam room min (m³)10
  • Steam room max (m³)16
  • Holding capacity of sauna rocks (kg)170
  • Weight (kg)16
  • Height (mm)750
  • Diameter (mm)460

Connection

  • Fuse16 A
  • Supply voltage, 3-phase3/N~400 V
  • Power cable (N x mm²)5 x 2.5
  • The Hive Mini 11 should be connected to 3 phase supply only.

Please note measurements are in m3 (meters cubed m3 not meters squared m2) A common mistake is to under power a sauna room, which can be difficult to correct after installation. Heaters work in 3 dimensions not 2! Also, remember that adding lots of glass or having no insulation will require a bigger heater than indicated above. Room/heater calculator can be found here.

We offer our heaters with stones specifically suited to the heater. The stones are certified safe to use in sauna, free from impurities. It is not recommended to harvest stones from the wild, as these may contain minerals such as Sulphur, asbestos and silica which could be released when warmed. Softer river stones will be prone to exploding or cracking when warmed.

Heaters must be fitted by a NZ certified electrician.
